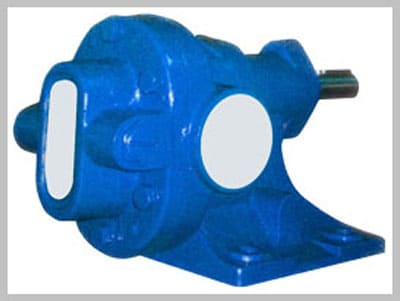

Rotary Gear Pumps "PGP"
Operating Range for Rotary Gear Pumps:
| Capacity | 0.3 to 54 M3/Hr |
|---|---|
| Pressure Up To | 20 Kg/cm2 |
| Viscosity Up To | 1,00,000 Cst |
| Temp Up To | 100° C |
GENERAL
“Flowchem” PGP Series Pumps are Rotary Type Positive Displacement Pumps which are Capable for Handling Liquid of any Viscosity. The Pump has Self Priming Capability However Some (Net Positive Suction Head) NPSH is Always Required to Avoid Cavitations Depending Upon Liquid to be Pumped at high Speed.
| GEAR PUMP APPLICATIONS | LIQUIDS |
|---|---|
| SUGAR PLANTS | OIL |
| CHEMICAL INDUSTRIES | SOAP |
| POWER PLANT | SOLVENT |
| FERTILIZER PLANT | PAINT |
| CEMENT PLANT | CHEMICALS |
| PAPER MILLS | BITUMEN |
| PHARMACEUTICAL INDUSTRIES |
Construction:
- Standard C.I. Construction Gear Pump with Bush Bearings For The Liquid Having Not Very Good Lubrication Properties.

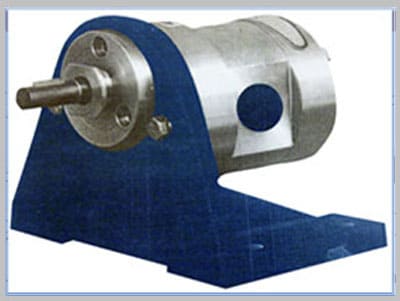

- Gear Pump with Stainless Steel Construction with Bush Bearings For Corrosive Liquids.
- Gear Pumps with Needle Roller Bearings for The Liquid Having Good Lubricating Properties.
- Gear Pump with Jacketed Body for The Liquid Which Gets Solidify at Room Temperature For Steam Heating.
- With Wear Plate For Abrasive Liquid For Ease Of Maintenance.
- Gear Pumps Can Be Supplied With Gland Packing or Mechanical Seal as Per Request.
“FLOWCHEM” PGP Series Pumps are Available in Various Material of Construction and Mechanical Construction for Corrosive and Non Corrosive Viscous Liquids. Depending Upon Application,
Flowchem : Rotary Gear Pumps / Stainless Steel Rotary Gear Pumps Manufacturer in India.
