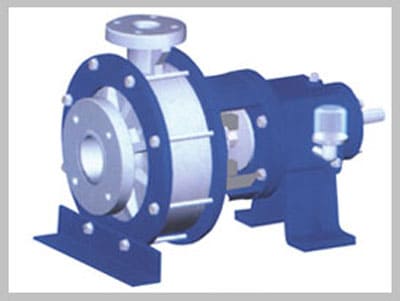

PP Pump / PVDF Pumps / Polypropelene Pumps
Operating Range for PP / PVDF Pumps:
| Capacity | 45 M³/hr |
| Head | up to 49 Mtr |
| Speed | 1500 / 3000 RPM |
| Temp upto | 120˚C |
| Pump Size | up to 50mm delivery size |
GENERAL
“FLOWCHEM” PP/PVDF Series Pumps are “Centrifugal Process Pumps” made by PP (Polypropelene / Polypropylene) material in Back pull-out Construction Horizontal, Foot Mounted, Single Stage End suction and top Centerline Discharge. These Pumps are the most economical and efficient for Pumping and Transfer Highly corrosive and aggressive liquids like acids, alkalis, effluent etc.
| Industry | Services |
|---|---|
| Chemical, Dyes And Intermediates | Organic/Nonorganic Chemical |
| Effluent | Drugs, Chemical And Pharmaceuticals |
| Water Tretments Plant | Thermal And Atomic Power Plant |
| Transfer Of Concentrated Acids | Dyes And Intermediates |
| Electro Plating | Caustic Soda, Acids etc. |
| Descaling And Pickling | Steel Plant, Copper Zink Smelter |
| Scabbing Of Corrosive Gases Like Cl2, F2, 802, 503, Co2, Nh3, etc. | Rayon Stapel Fiber Plant Black Liquior, etc. |
Construction PP / PVDF / Polypropelene Pumps:
- PP Centrifugal Process Pumps are offered with semi open impeller with 'CARTIDGE' Bearing Housing For the adjustments of impeller clearance for Prolong efficient working.
- All wetted parts are molded from virgin material of PP, PPCP, PVDF etc. for the Corrosive resistance and temp up to 120˚ C.
- They are with 'Back pullout Construction' for the ease of maintenance.
- The Standard Pump is supplied with Teflon bellow type Mechanical Seal but other types of Mechanical Seal can be incorporated. Also available with Gland packing.
- Wide range of Metallic and Non metallic sleeves.
- Flange of ANIS B-16.5 and PN-16 available.
- Other C.I parts are Powder coated for Corrosion Resistance .
Flowchem : PP Pumps / PVDF Pumps, Polypropelene / Polypropylene Pumps Manufacturer in India.
