CENTRIFUGAL MULTISTAGE BOILER FEED PUMP "CMF"
Centrifugal Multistage Feed Pumps for Boiler Feed Application
OPERATING RANGE :
For Centrifugal Multistage Boiler Feed Pumps
| Capacity Q Up to | 150 M³ / Hr |
|---|---|
| TDH - H - Up to | 275 MLC |
| Speed - n - | 960 / 1450 / 2900 RPM |
| Temperature | 120° C |
| Working Pressure | 40 Bars |
| Pump sizes – DN - | 32 mm to 100 mm |
GENERAL

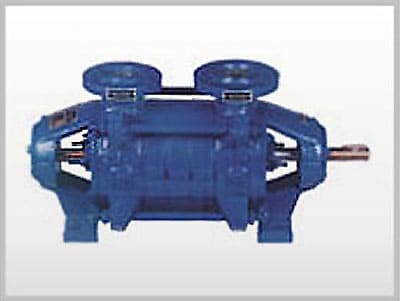

"Flowchem" Series CMF Pumps are Centrifugal Multistage Boiler Feed Pumps, Horizontal, Foot Mounted.
PRODUCTS APPLICATIONS :
| INDUSTRIES | SERVICES |
|---|---|
| STEAM BOILERS | BOILER FEEDING |
| CHEMICALS, DYES & INTERMEDIATES | HOT WATER CIRCULATION |
| OIL EXTRACTION AND WASTE OIL REFINERIES | CONDENSATE |
| BULK DRUGS & PHARMACEUTICALS | WATER SUPPLY |
| EFFLUENT TREATMENT PLANTS | SPRINKLING |
| HEATING & AIR CONDITIONING PLANTS | IRRIGATION |
CONSTRUCTIONAL OPTIONS :
- Offered with Closed Impeller.
- Impellers are provided Back Wear Ring to minimize Axial Thrust and Gland Leakage.
- Flange Rating PN 16 to PN 64 .
-
Various Shaft Sealing Available are,
a. Gland Packing (ASB. / NON ASB. depending on the service.)
b. Moulded Graphite Rings. (GRAFOIL PACKING)
c. Mechanical Seals.
- Jacketing for heating/cooling offered for S/Box.
- Standard Bearing / Special Heavy Duty Bearing arrangements available.
MATERIALS OF CONSTRUCTION :
- GRADED GREY CAST IRON.
- CARBON STEEL(WCB) / ALLOY STEEL.
- CF8, CF8M,
- GUN METAL / BRONZE
AS PER ASTM / DIN STANDARDS
For Centrifugal Multistage Boiler Feed Pumps
