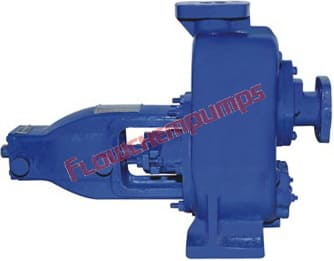

CENTRIFUGAL SELF PRIMING MUD PUMPS "CSP"
Operating Range for Centrifugal Self Priming Mud Pumps:
| Maximum Flow Capacity Up To | 125 m3/hr |
|---|---|
| Maximum Total Differential Head Up To | 45 MLC |
| Maximum Temperature | 150° C |
| Maximum Operating Pressure Up To | 24 Bar |
GENERAL
"Flowchem" specializes in manufacturing 'Custom Built' Centrifugal Self Priming Pumps with foot-mounting & back pullout arrangement. The adoption of semi-open impeller permits its employment for pumping muddy liquids. Variey of MOC & constructional features can be adopted to suit the applications.
Application of Centrifugal Self Priming Mud Pumps:
Petrochem, Fertilizers, Pharmaceuticals Industries, Bulk Drugs Food Processing / Starch / Paper / Sugar Plants, Edible / Castor Oil Refineries, Thermic Fluid Circulation, Fatty Acid distillation Plant etc.
WE UNDERTAKE THE DEVELOPMENT OF SPECIAL PURPOSE PUMPS / CRITICAL SPARES BY PROVIDING COMPETENT ENGINEERING SERVICES.
Constructional Optional for Centrifugal Self Priming Mud Pumps:
Shaft sealing arrangement such as mechanical seal with suitable API plans & various type of gland packings with / without flushing arrangement suitable to applications available. Bearing arrangments suitable to applications available.
Jacketing for casing and stuffing box available.
For operating requirments deferring from above please contact flowchem.
Material of Construction for Centrifugal Self Priming Mud Pumps:
| CF8M / CF8 | CD4MCu | CA15 | Ni&Ni-ALLOYS | Bronze |
| CF3M / CF3 | CN7M | Haste Alloy | NI-Resist Cast Iron | Cast Iron |
